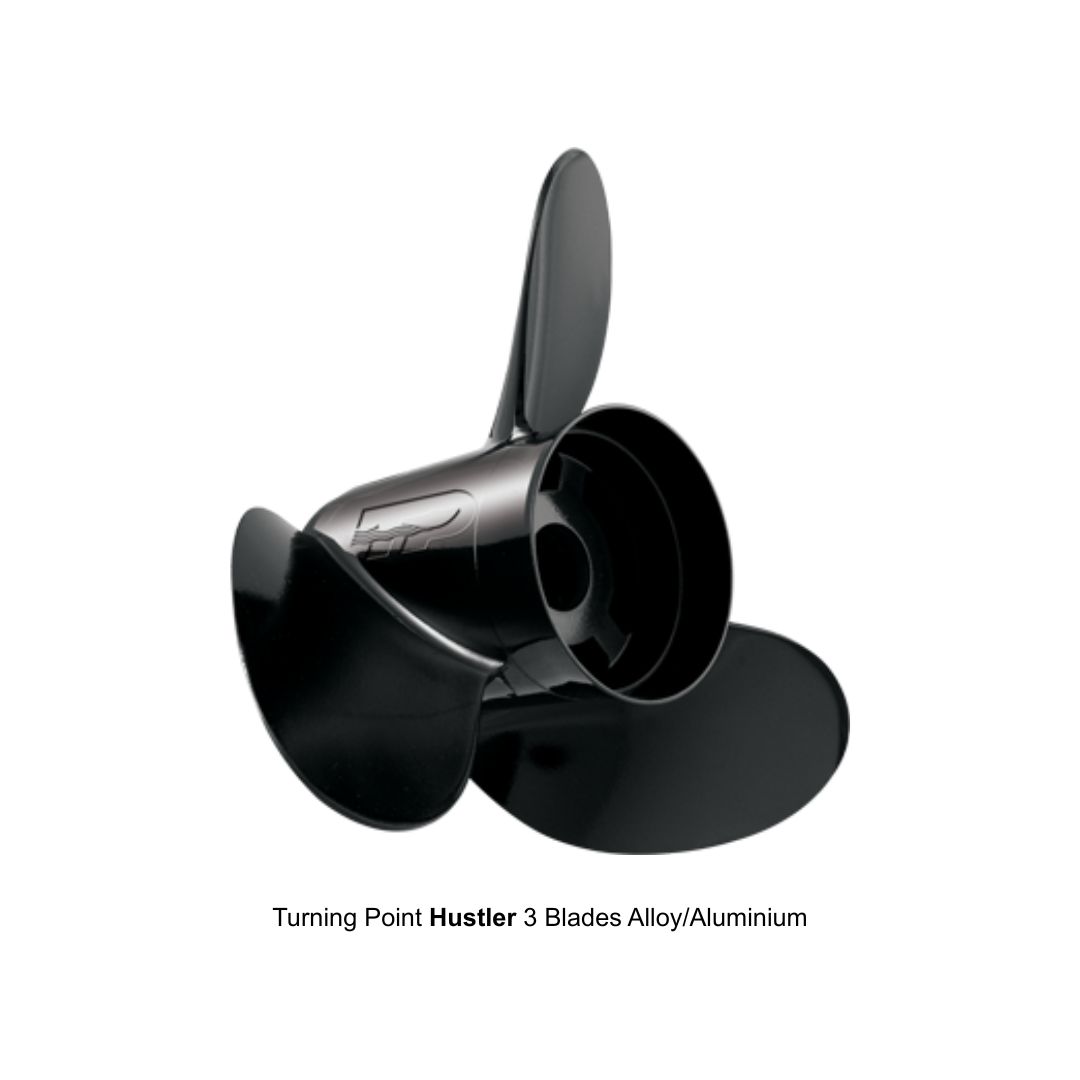

Description TURNING POINT Hustler Propeller Aluminium 3 Blades, LE1/LE2 Models These are propellers ONLY. Propeller Hub Kit is required and must be purchased seperately. It is NOT included with the propeller. These propellers are suitable with 40-150HP Outboard Engines with a 4.25″ Gearcases and 500 Series Installation Kits. PROPELLERS PRODUCT SPECIFICATIONS BLA PART NUMBER PROP PART NUMBER MODEL NUMBER DIAMETER x PITCH SIZE NUMBER OF BLADES ROTATION PROP BRAND PROP MATERIAL SUITABLE INSTALLATION KIT HUB PROP TYPE 202335 21431111 LE1/LE2-1411 14″ x 11″ 3 RIGHT HUSTLER ALUMINIUM 500 Series (See suitable engine and compatible hub kit below) 40-150 HP Engines with a 4.25″ Gearcase 202337 21431311 LE1/LE2-1413 14″ x 13″ 3 RIGHT HUSTLER ALUMINIUM 500 Series (See suitable engine and compatible hub kit below) 40-150 HP Engines with a 4.25″ Gearcase 202321 21431511 LE1/LE2-1315 13.75″ x 15″ 3 RIGHT HUSTLER ALUMINIUM 500 Series (See suitable engine and compatible hub kit below) 40-150 HP Engines with a 4.25″ Gearcase 202322 21431711 LE1/LE2-1317 13.25″ x 17″ 3 RIGHT HUSTLER ALUMINIUM 500 Series (See suitable engine and compatible hub kit below) 40-150 HP Engines with a 4.25″ Gearcase 202329 21431911 LE1/LE2-1319 13.25″ x 19″ 3 RIGHT HUSTLER ALUMINIUM 500 Series (See suitable engine and compatible hub kit below) 40-150 HP Engines with a 4.25″ Gearcase 202333 21432111 LE1/LE2-1321 13.25″ x 21″ 3 RIGHT HUSTLER ALUMINIUM 500 Series (See suitable engine and compatible hub kit below) 40-150 HP Engines with a 4.25″ Gearcase NOTE: Not applicable with Turning Point’s 10, 20 and 200 Hub Kit series. TWO (2) STEPS TO CHOOSE THE RIGHT PROPELLER NOTE: To find the correct Installation Kit locate the HP, gearcase size, and prop shaft spline count of your outboard or sterndrive. STEP 1: Find the motor engine suitable to your propeller listed below. If motor engine is not listed, kindly check other propellers. STEP 2: Find and purchase the designated installation kit suitable to the propeller. THE FOLLOWING HUB KIT/SYSTEMS ARE COMPATIBLE WITH THE PROPELLERS STATED ABOVE MOTOR ENGINE SPLINES HORSEPOWER HUB KIT SELECTION MODEL NUMBER EVINRUDE & JOHNSON 13 2 Cylinder: 50HP (’71-’74) / 45-55HP Commercial 3 Cylinder: 55HP, 60HP, 65HP, 70HP, 75HP with Large Gearcase, 65HP Commercial 4 Cylinder: 75HP, 85HP, 88HP, 90HP, 100HP, 110HP, 115HP, 120HP (’86-’94), 125HP, 135HP (’73-’76), 140HP (’77-’84, ’86-’94) H.O. (includes E-TEC H.O): 60, 90, 115HP E-TEC: 40, 50, 60, 65, 75HP / 20″ Shaft: 90, 115HP (Not Pontoon Series), 130HP (’09-’10) 503 203503 EVINRUDE & JOHNSON 13 4 Stroke: 60HP, 70HP 506 203506 FORCE 15 75HP (’99) / 90HP to 150HP (’95 ) 501 203501 HONDA 15 P60HP / 75HP, 90HP (‘99 ) / 100HP, 115HP, 130HP. (not 115D) 507 203507 MERCURY & MARINER 15 2 & 4 stroke, 40 to 60 Bigfoot 70HP (‘87-’89), 75HP, 80HP (‘78-’89), 90HP, 100HP, 115HP, 125HP, 140HP / 150HP XR 4/6 (thru 1993, includes equivalent Mariner Magnum I, II, III.) EFI CT & SeaPro, 4 Cylinder: 40 to 75HP OptiMax: 75HP, 90HP, 115HP, 125HP NOTE: Props Not Available for ’77 & Older models, 501 203501 NISSAN & TOHATSU 15 60C, 70C / 90 to 140HP (not BFT) 505 203505 NISSAN & TOHATSU 15 BFT (‘14 ): W60HP, 60HP, 75HP, 90HP 507 203507 OMC 13 Cobra 400: 2.3 to 3.0L (’78-’89) Sea Drive: 1.6 to 1.8L 503 203503 PARSUN 15 T60, T75, T85, T90 500 203500 SUZUKI 13 DT 2 Stroke (’89 ): 75 to 140HP DF 4 Stroke (’98-’09): 60HP, 70HP 506 203506 SUZUKI & JOHNSON (use 4 blade props only) — 4 Stroke: (‘09 ) 70A HP, 80A HP, 90A HP, 70 HP, 80 HP 4 Stroke: (‘01 ) 90HP, 100HP, 115HP (Not 115A) 509 203509 SUZUKI & JOHNSON (use 4 blade props only) — DF 4 Stroke: 50AV, 60AV, 115A, 140, 140A 501 203501 YAMAHA 15 High Thrust: FT50, FT60 HP 2 stroke: 60 to 100 HP 4 stroke: 70HP, 80HP, 90HP (’03-’16), 100HP NOTE: If prop strikes trim tab, replace with Yamaha Part: #6E5-45371-10 500 203500 YAMAHA 15 2 stroke: 115 to 130HP 4 stroke: 90 (’17 ), 115HP NOTE: If prop strikes trim tab, replace with Yamaha Part #6E5-45371-10. 505 203505 The following hub kits are compatible with the propellers cited above. (If you own one of these hub kit and it is still in good working condition, there is no need to purchase a hub kit). – Turning Point Propellers #500, 501, 503, 505, 506, 507   – Mercury Flo-Torq II   – Michigan Wheel XHS   – Solas Rubex RBX ABOUT TURNING POINT HUSTLER 3 BLADE PROPELLERS Turning Point has built their reputation on a relentless focus on engineering the best performing aluminium propellers in the World. Hustler 3 Blade Propellers run as fast as some Stainless Steel Props (and sometimes faster) due to unique blade geometry and an exclusive Turning Point manufacturing process called the Squeeze Casting. The propeller is made of super stiff metallurgy, unique blade geometry, aggressive pitch, rake, and cup to deliver a stainless performance at aluminium prices. Hustler propellers are the only aluminium propeller manufactured with performance enhancing vent holes (selected models only 13” & 14” diameter 15 Pitch). Great for boaters looking to get the most top end out of their boat, and offer excellent bow lifting capabilities and make the most of the boat and engine combination. Designed to be compatible on mid-range horsepower pontoons, fishing, ribs, and tiller boats. The 3-Blade Prop is made to work on tri-toons (recent testing has shown that pontoons and tri-toons run better with larger blade diameters than runabout or bass boat hulls). HUSTLER PROPELLER FEATURES Made of Squeeze Cast for Added Strength Stainless steel performance is built into the Hustler Aluminum prop line. This is achieved through unique blade geometry and an exclusive Turning Point manufacturing process called the Squeeze Casting. This process generates the highest mechanical properties attainable in a cast aluminum propeller resulting from high density tighter grain structure. Stiffer blades means less flex and a faster prop. Most competitor’s aluminum propellers are manufactured via the old die-cast process that produces props with air bubble, voids, and granularity. Making props weak, stiff, inefficient, and difficult to repair. With Lasting Ultracoat Powder Coated Finish Exclusive to Turning Point, the Ultracoat powder coat rivals a fine automotive finish, and is more durable than paint. Utilising a state-of-the-art five step process, the ultracoat gives the propeller a shiny, uniform appearance that enhances any boat’s good looks. This is the Gold Standard in Aluminum Corrosion Protection. As compared to competitors’ paint and coating usual processes, leading to less abrasion and corrosion resistance. With Large and High Flow-Through Barrel Exhaust System Turning Point’s Propeller Housings have massive exhaust flow pathways. Maximising exhaust flow increases horsepower and top end speed. Offers 40% more exhaust flow area versus competive product. More exhaust flow and less backpressure, generates more horsepower. Like headers for the boat. Tuned Vents for Fast Hole Shot Turning Point uses this race boat proven technology to increase low speed acceleration and hole shot. Use it to get your boat on plane faster, and to your favourite fishing spot quicker! (selected models only 13” & 14” diameter 15 Pitch). Best “In-Class” Reversibility Recent tests reveal that new Hustler Aluminium Propellers have up to 46% more reverse thrust over competitive propeller designs. Performance Tuned Rake Angles Higher rake angles tighten the vortex produced by the propellers, adding to boat lift and overall performance. Tuned Progressive Pitch Angles Accelerating and channeling water to minimise slip increases performance and fuel economy. ABOUT MASTERGUARD HUB SYSTEM Exclusive Lifetime Warranty Hubs Turning Point is the only company to offer MasterGuard Installation kits and prop housings for 6-300 HP engines with a lifetime warranty hub. Boaters save up to 38% when buying a replacement propeller housing. MasterGuard hubs are re-useable most of the time after a prop strike, and if not, it is warrantied even if the prop is destroyed. The hubs offer lower unit protection with 1000ft. break point. Engineered to withstand typical wear and tear over time without risk of spinning or failure under normal operational use. Turning Point’s unique patented one piece hub with glass filled nylon over durable marine bronze splines eliminates failures commonly seen in multi-part “sleeve and spline” designs, and pressed-in rubber hub systems. Covered by US Patent #6,471,481, #6,685,432, #7,717,678 and worldwide patents with additional patents pending. Increases Performance and Horsepower Hubs comes with massive exhaust flow pathways due to the reduced hub size. The Propellers have 40% more exhaust flow area versus competive product. More exhaust flow and less backpressure can generate more horsepower. Like headers for the boat. Eliminate Hub System Vibration and Chatter Made of innovative one piece design that reduces the number of parts and eliminates failures commonly seen in multi-part hub systems. Eliminate Hub Cracking and Failure The glass reinforced high-tech polymer construction increases flexibility, eliminating potential material stress fractures. Corrosion Resistant Materials Made of premium corrosion resistant durable marine bronze splines. Reduce Gear Shock and Engine/Drive Damage Made of shock absorbing high-tech polymer cushion with enhanced lower unit protection. Easy to install Made of clear and easy step-by-step directions coupled with minimal parts makes installation easy. Interchangeable with other manufacturer’s props Turning Point’s 500 Series Installation Kits (for 4.25 and 4.75 inch gearcases) interchanges with other manufacturers’ propellers. Upgrades and replaces Mercury Flo-Torq II, Michigan Wheel XHS, and Solas Rubex hub kit systems. WARNINGS MasterGuard Installation Kits are manufactured of marine brass, which contains lead in its metal matrix. This is an element known to the State of California to cause cancer, birth defects or other reproductive harm if ingested. Visit www.p65warning.ca.gov. Hustler Aluminum Propeller Housings are coated with a black colored material, which contains carbon. This is an element known to the State of California to cause cancer, birth defects or other reproductive harm. Visit www.p65warning.ca.gov. For installation guides see the following: Turning Point Hub Kit, Installation Instructions for Models #500 (11500000), #501 (11500100), #505 (11500500), #509 (11500900) Turning Point Hub Kit, Installation Instructions for Model #503 (11500300) Turning Point Hub Kit, Installation Instructions for Model #506 (11500600) Turning Point Hub Kit, Installation Instructions for Model #507 (11500700)
