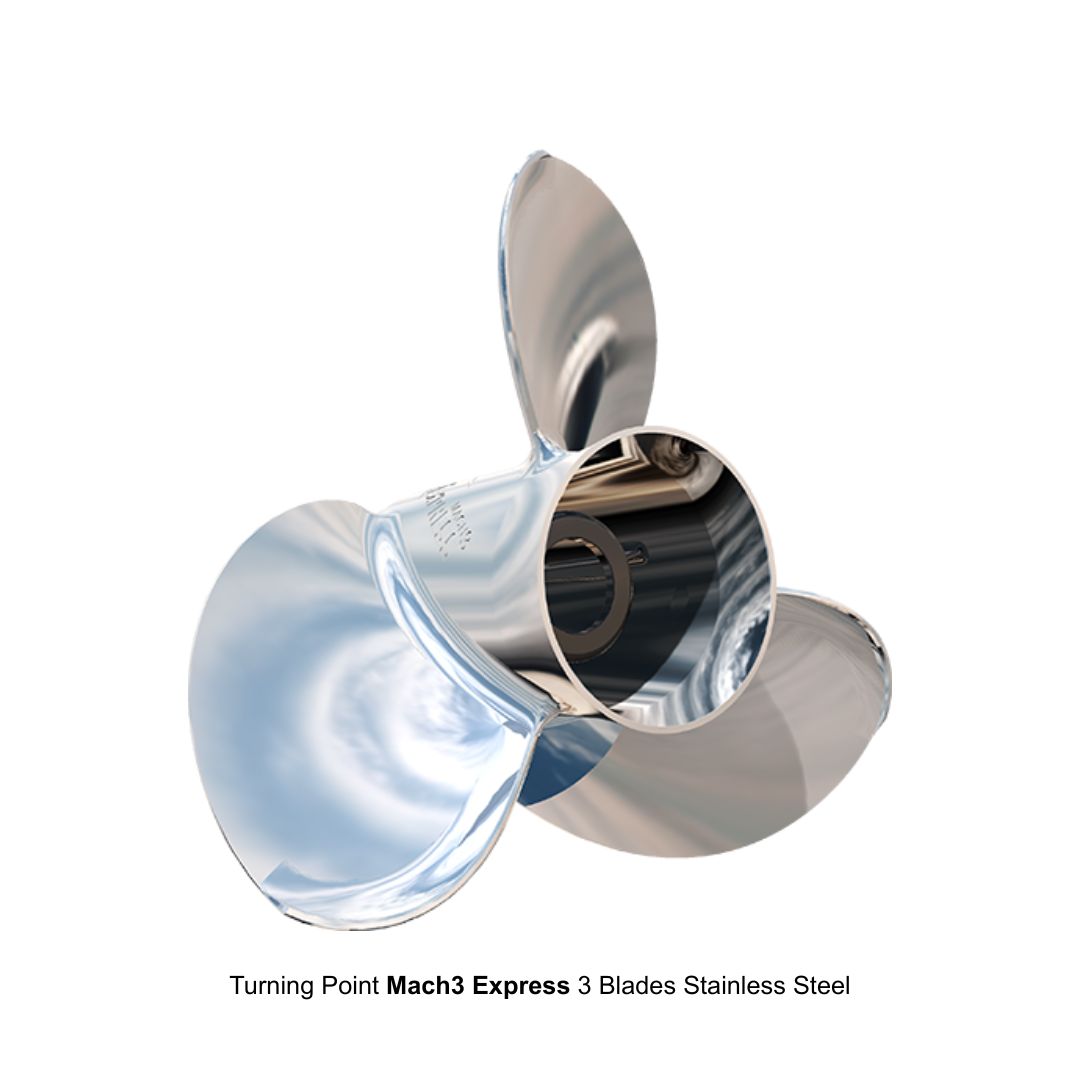

Description TURNING POINT Mach3 Express Propeller Stainless Steel 3 Blades, EX1/EX2 Models These are propellers ONLY. Propeller Hub Kit is required and must be purchased seperately. It is NOT included with the propeller. These propellers are suitable with 40-150HP Outboard Engines with a 4.25″ Gearcase and 500 Series Installation Kits. PROPELLERS PRODUCT SPECIFICATIONS BLA PART NUMBER PROP PART NUMBER MODEL NUMBER DIAMETER x PITCH SIZE NUMBER OF BLADES ROTATION PROP BRAND PROP MATERIAL SUITABLE INSTALLATION KIT HUB PROP TYPE 202715 31431512 EX1/EX2-1315 13.75″ x 15″ 3 RIGHT EXPRESS MACH3 STAINLESS STEEL 500 Series (See suitable engine and compatible hub kit below) 40-150HP Engines with a 4.25″ Gearcase 202717 31431712 EX1/EX2-1317 13.25″ x 17″ 3 RIGHT EXPRESS MACH3 STAINLESS STEEL 500 Series (See suitable engine and compatible hub kit below) 40-150HP Engines with a 4.25″ Gearcase 202719 31431912 EX1/EX2-1319 13.25″ x 19″ 3 RIGHT EXPRESS MACH3 STAINLESS STEEL 500 Series (See suitable engine and compatible hub kit below) 40-150HP Engines with a 4.25″ Gearcase 202721 31432112 EX1/EX2-1319 13.25″ x 21″ 3 RIGHT EXPRESS MACH3 STAINLESS STEEL 500 Series (See suitable engine and compatible hub kit below) 40-150HP Engines with a 4.25″ Gearcase THE FOLLOWING HUB KIT/SYSTEMS ARE COMPATIBLE WITH THE PROPELLERS STATED ABOVE MOTOR ENGINE SPLINES HORSEPOWER HUB KIT SELECTION MODEL NUMBER EVINRUDE & JOHNSON 13 2 Cylinder: 50HP (’71-’74) / 45-55HP Commercial 3 Cylinder: 55HP, 60HP, 65HP, 70HP, 75HP with Large Gearcase, 65HP Commercial 4 Cylinder: 75HP, 85HP, 88HP, 90HP, 100HP, 110HP, 115HP, 120HP (’86-’94), 125HP, 135HP (’73-’76), 140HP (’77-’84, ’86-’94) H.O. (includes E-TEC H.O): 60, 90, 115HP E-TEC: 40, 50, 60, 65, 75HP / 20″ Shaft: 90, 115HP (Not Pontoon Series), 130HP (’09-’10) 503 203503 EVINRUDE & JOHNSON 13 4 Stroke: 60HP, 70HP 506 203506 FORCE 15 75HP (’99) / 90HP to 150HP (’95 ) 501 203501 HONDA 15 P60HP / 75HP, 90HP (‘99 ) / 100HP, 115HP, 130HP. (not 115D) 507 203507 MERCURY & MARINER 15 2 & 4 stroke, 40 to 60 Bigfoot 70HP (‘87-’89), 75HP, 80HP (‘78-’89), 90HP, 100HP, 115HP, 125HP, 140HP / 150HP XR 4/6 (thru 1993, includes equivalent Mariner Magnum I, II, III.) EFI CT & SeaPro, 4 Cylinder: 40 to 75HP OptiMax: 75HP, 90HP, 115HP, 125HP NOTE: Props Not Available for ’77 & Older models, 501 203501 NISSAN & TOHATSU 15 60C, 70C / 90 to 140HP (not BFT) 505 203505 NISSAN & TOHATSU 15 BFT (‘14 ): W60HP, 60HP, 75HP, 90HP 507 203507 OMC 13 Cobra 400: 2.3 to 3.0L (’78-’89) Sea Drive: 1.6 to 1.8L 503 203503 PARSUN 15 T60, T75, T85, T90 500 203500 SUZUKI 13 DT 2 Stroke (’89 ): 75 to 140HP DF 4 Stroke (’98-’09): 60HP, 70HP 506 203506 SUZUKI & JOHNSON (use 4 blade props only) — 4 Stroke: (‘09 ) 70A HP, 80A HP, 90A HP, 70 HP, 80 HP 4 Stroke: (‘01 ) 90HP, 100HP, 115HP (Not 115A) 509 203509 SUZUKI & JOHNSON (use 4 blade props only) — DF 4 Stroke: 50AV, 60AV, 115A, 140, 140A 501 203501 YAMAHA 15 High Thrust: FT50, FT60 HP 2 stroke: 60 to 100 HP 4 stroke: 70HP, 80HP, 90HP (’03-’16), 100HP NOTE: If prop strikes trim tab, replace with Yamaha Part: #6E5-45371-10 500 203500 YAMAHA 15 2 stroke: 115 to 130HP 4 stroke: 90 (’17 ), 115HP NOTE: If prop strikes trim tab, replace with Yamaha Part #6E5-45371-10. 505 203505 The following is compatible with the propellers cited above. (If you own one and it is still in good working condition, there is no need to purchase a hub kit.) Turning Point Propellers #500, 501, 503, 505, 506, 507, 509 Mercury Flo-Torq II Michigan Wheel XHS Solas Rubex RBX TWO (2) STEPS TO CHOOSE THE RIGHT PROPELLER NOTE: To find the correct Installation Kit locate the HP, gearcase size, and prop shaft spline count of your outboard or sterndrive. STEP 1: Find the motor engine suitable to your propeller listed below. If motor engine is not listed, kindly check other propellers. STEP 2: Find and purchase the designated installation kit suitable to the propeller. EXPRESS PROPELLER FEATURES PROPRIETARY STAINLESS STEEL, TP17 This is formulated to meet the exacting requirements of the New Express Mach3 and Mach4 designs. 20% higher chromium content than the competition – more shine, better corrosion resistance. Almost 250% Stronger and 5X more durable than run-of-the-mill stainless steel. This new material allows Turning Point’s Engineers and Designers the freedom to produce radical new designs that will help you wring the most performance out of your boat. MAXSPEED DYNO BALANCE PROCESSES Gives your boat a smoother running ride, higher top end speed, and increases fuel economy. This process is standard on every prop and is only offered as a costly option from other manufacturers. (Exclusive on all Mach3 and Mach4 Propellers) BEST “IN-CLASS” REVERSIBILITY Recent tests reveal that new Express Mach Series Propellers have up to 46% more reverse thrust over competitive propeller designs. TUNED VENTS FOR FAST HOLE SHOT Turning Point uses this race boat proven technology to increase low speed acceleration and hole shot. Use it to get your boat on plane faster, and to your favourite fishing spot quicker! (selected models only 13” through 16” diameter 15 Pitch). PERFORMANCE TUNED RAKE ANGLES Higher rake angles tighten the vortex produced by the propellers, adding to boat lift and overall performance. HIGH FLOW-THROUGH BARREL EXHAUST SYSTEM Maximising exhaust flow increases horsepower and top end speed. TUNED PROGRESSIVE PITCH ANGLES Accelerating and channeling water to minimise slip increases performance and fuel economy. ABOUT MACH 3 EXPRESS STAINLESS STEEL PROPELLERS Utilizing almost 40 years of race boat and high performance prop design expertise, the Express Mach3 series of props captures all the best techniques and technologies available to get the most out of the boat. Aggressive pitch angles, radical designs, sharp cup profiles. These three blade propellers excel at achieving maximum speed, while delivering Best-in-Class handling and acceleration. Hole Shot? Got it, and hang on! Cornering? it got that, too! Top Speed? “No Faster Prop on the Water” for a reason! Upgrading your current propeller from aluminum to stainless steel, or from an old generation design to the latest technology, Express Mach3 Propeller is the best investment in boat improvement you can make. Today’s New Designs will run circles around the competition, and can make dramatic improvements in boat performance. The gain in fuel economy can often pay for the cost of a new propeller in one or two seasons, making it a sound investment in your time on the water. ABOUT MASTERGUARD HUB SYSTEM Exclusive Lifetime Warranty Hubs Turning Point is the only company to offer MasterGuard Installation kits and prop housings for 6-300 HP engines with a lifetime warranty hub. Boaters save up to 38% when buying a replacement propeller housing. MasterGuard hubs are re-useable most of the time after a prop strike, and if not, it is warrantied even if the prop is destroyed. The hubs offer lower unit protection with 1000ft. break point. Engineered to withstand typical wear and tear over time without risk of spinning or failure under normal operational use. Turning Point’s unique patented one piece hub with glass filled nylon over durable marine bronze splines eliminates failures commonly seen in multi-part “sleeve and spline” designs, and pressed-in rubber hub systems. Covered by US Patent #6,471,481, #6,685,432, #7,717,678 and worldwide patents with additional patents pending. Increases Performance and Horsepower Hubs comes with massive exhaust flow pathways due to the reduced hub size. The Propellers have 40% more exhaust flow area versus competive product. More exhaust flow and less backpressure can generate more horsepower. Like headers for the boat. Eliminate Hub System Vibration and Chatter Made of innovative one piece design that reduces the number of parts and eliminates failures commonly seen in multi-part hub systems. Eliminate Hub Cracking and Failure The glass reinforced high-tech polymer construction increases flexibility, eliminating potential material stress fractures. Corrosion Resistant Materials Made of premium corrosion resistant durable marine bronze splines. Reduce Gear Shock and Engine/Drive Damage Made of shock absorbing high-tech polymer cushion with enhanced lower unit protection. Easy to install Made of clear and easy step-by-step directions coupled with minimal parts makes installation easy. Interchangeable with other manufacturer’s props Turning Point’s 500 Series Installation Kits (for 4.25 and 4.75 inch gearcases) interchanges with other manufacturers’ propellers. Upgrades and replaces Mercury Flo-Torq II, Michigan Wheel XHS, and Solas Rubex hub kit systems. WARNINGS MasterGuard Installation Kits are manufactured of marine brass, which contains lead in its metal matrix. This is an element known to the State of California to cause cancer, birth defects or other reproductive harm if ingested. Visit www.p65warning.ca.gov. Hustler Aluminum Propeller Housings are coated with a black colored material, which contains carbon. This is an element known to the State of California to cause cancer, birth defects or other reproductive harm. Visit www.p65warning.ca.gov. For installation guides see the following: Turning Point Hub Kit, Installation Instructions for Models #500 (11500000), #501 (11500100), #505 (11500500), #509 (11500900) Turning Point Hub Kit, Installation Instructions for Model #503 (11500300) Turning Point Hub Kit, Installation Instructions for Model #506 (11500600) Turning Point Hub Kit, Installation Instructions for Model #507 (11500700)
