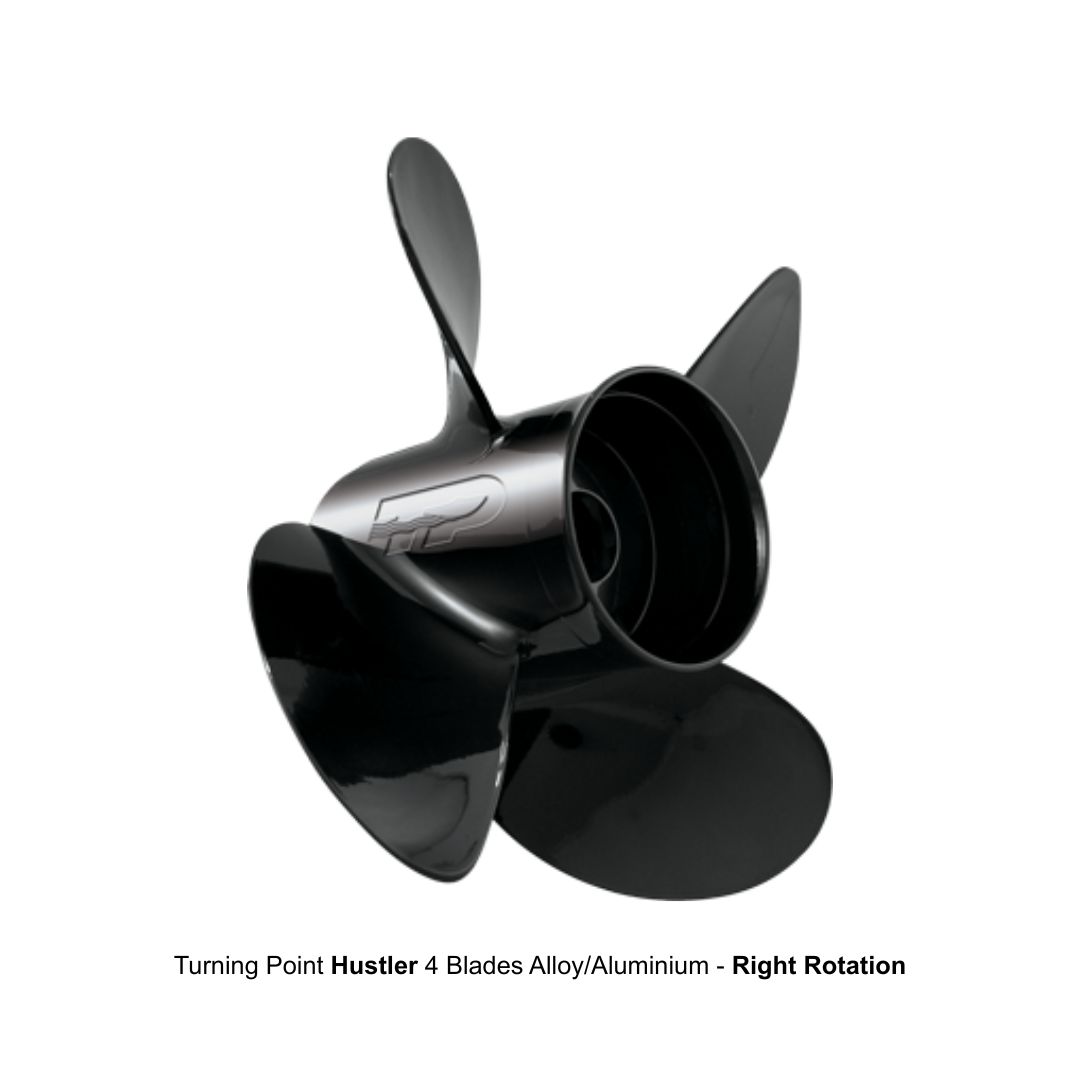

Description TURNING POINT Hustler Propeller Aluminium 4 Blades, LE1/LE2 Models These are propellers ONLY. Propeller Hub Kit is required and must be purchased seperately. It is NOT included with the propeller. These propellers are suitable with 40-150HP Outboard Engines with a 4.25″ Gearcase and 500 Series Installation Kits. NOTE: Not applicable with Turning Point’s 10, 20 and 200 Hub Kit series. PROPELLERS PRODUCT SPECIFICATIONS BLA PART NUMBER PROP PART NUMBER MODEL NUMBER DIAMETER x PITCH SIZE NUMBER OF BLADES ROTATION PROP BRAND PROP MATERIAL SUITABLE INSTALLATION KIT HUB PROP TYPE 202339 21431330 LE1/LE2-1413-4 14″ x 13″ 4 RIGHT HUSTLER ALUMINUM 500 Series (See suitable engine and compatible hub kit below) 40-150HP Engines with a 4.25″ Gearcase 202340 21431530 LE1/LE2-1315-4 13.5″ x 15″ 4 RIGHT HUSTLER ALUMINUM 500 Series (See suitable engine and compatible hub kit below) 40-150HP Engines with a 4.25″ Gearcase 202342 21431730 LE1/LE2-1317-4 13.25″ x 17″ 4 RIGHT HUSTLER ALUMINUM 500 Series (See suitable engine and compatible hub kit below) 40-150HP Engines with a 4.25″ Gearcase 202344 21431930 LE1/LE2-1319-4 13″ x 19″ 4 RIGHT HUSTLER ALUMINUM 500 Series (See suitable engine and compatible hub kit below) 40-150HP Engines with a 4.25″ Gearcase 202346 21432130 LE1/LE2-1321-4 13″ x 21″ 4 RIGHT HUSTLER ALUMINUM 500 Series (See suitable engine and compatible hub kit below) 40-150HP Engines with a 4.25″ Gearcase THE FOLLOWING HUB KIT/SYSTEMS ARE COMPATIBLE WITH THE PROPELLERS STATED ABOVE MOTOR ENGINE SPLINE PROP SHAFT HORSEPOWER HUB KIT SELECTION MODEL NUMBER EVINRUDE & JOHNSON 15 V4 with V6 Large Gearcase: 100HP commercial, 120HP (’85), 130HP (’95-’96), 140HP (’85) Pleasure (’95 ): 115HP, 130HP H.O. (includes E-TEC H.O.): (25″ Shaft) 90, 115, 135, 150, 200, 225, 250HP E-TEC (includes pontoon series – not for E-TEC G2): (25″ shaft) 90HP, 115HP, 130HP (’09-’10), 135HP to 300HP V6: 135HP to 250HP V8: 250HP to 300HP 502 203502 EVINRUDE 15 E-TEC G2: G2 Series Only: 150 to 300HP 511 203511 HONDA 15 BF115D, BF135, BF150, BF200 (’02-’12), BF225 HP (’02-’12) (NOTE: Use 707 Super Duty Kit for 200 hp Engines.) 507 707* 203507 203707* HONDA 15 BF200A (’13 ), BF225A (’13 ), BF250A (’12 ) HP (NOTE: Use 708 Super Duty Kit for 200 HP Engines.) 708 203708 JOHNSON (use Express Mach3 OS series props only) 15 4 Stroke: 200 HP, 225 HP 707 203707 MERCURY & MARINER 15 NOTE 1: Use 701 Super Duty Kit for 200 HP Engines. NOTE 2: 115 HP ProXS CT Only; For ProXS & Verado with 1.25” Propeller Shaft, use Mercury Solid Hub Kit with the Turning Point Propeller. EFI CT/SeaPro: 90 to 150 HP V6 & I6: 135 to 300 HP Verado: 135 to 300 HP (not HD) OptiMax: 150, 200, 250 HP 501 701* 203501 203701* MERCRUISER 15 NOTE 1: Use 701 Super Duty Kit for 200 hp Engines. NOTE 2: If propeller strikes trim tab, replace with Mercury, PART #822777A1 Alpha One and Bravo One (’83 ) 501 701* 203501 203701* OMC 15 COBRA 800: 3.0 to 7.5L KING COBRA: 454, 502 HP SEA DRIVE: 2.0 to 4.0L 502 203502 SUZUKI 15 DT 2-Stroke: 150 to 225HP (NOTE: Use 707 Super Duty Kit for 200 HP Engines) 507 707* 203507 203707 SUZUKI 15 DF 4 stroke: 150 to 300HP (NOTE: Use 707 Super Duty Kit for 200 HP Engines. (use Express Mach3 OS series props only) 507 707* 203507 203707 TOHATSU 15 BFT115, BFT150, BFT200, BFT225, BFT250 HP (NOTE: Use 708 Super Duty Kit for 200 HP Engines) 508 708* 203508 203708 VOLVO 15 Penta SX & OMC SX Cobra: (19 spline) (’94 ): 3.0 to 8.2L. Not available for Volvo DuoProp or Aquamatic Drives 504 203504 VOLVO 15 Penta AQ: (17 spline) (use 4 blade props only) 200, 250, 270, 280, 290 HP 510 203504 YAMAHA 15 NOTE 1: Use 705 Super Duty Kit for 200 hp Engines. NOTE 2: If Express Mach3 OS Prop strikes trim tab, replace with part #6E5-45371-10-00. 505 203505 YAMAHA 15 2 and 4 Stroke: 150 to 250HP F300 (V6 only ‘09 ) / Sterndrives 3.0 to 7.4L 705* 203705* YAMAHA 15 F350 HP 715* 203715* *Motors 200HP and above must use series 700 Hub Kits. Failure to use will void warranty. The following hub systems are compatible with the propellers cited above. (If you own one of these hub systems and it is still in good working condition, there is no need to purchase a hub kit). – Turning Point Propellers #501, 502, 504, 505, 507, 508, 510, 511, 701, 705, 707, 708, 715   – Mercury Flo-Torq II   – Michigan Wheel XHS   – Solas Rubex RBX ABOUT TURNING POINT HUSTLER 4 BLADE PROPELLERS Turning Point’s Four Blade Hustler revolutionized the aluminum propeller market when introduced over 6 years ago. No one had ever produced an aluminum propeller with two different blade shapes (Dual Geometry) for 90-300 hp applications. This prop is uniquely engineered with two blade geometries: two blades to utilize the Hustler high performance variable rake and aggressive pitch design for hole shot and cornering, and another two blades to utilize an offshore style design for high speed and maximum stern lift. These props re-wrote the rules, proving to run a four blade that has unprecedented hole shot, handling, and rough water stability without the top-end speed loss you experience with other manufacturers’ propellers. The Hustler 4 blade series is perfect for any application that demands enhanced acceleration, cornering, and load carrying capabilities. This prop series is ideally suited for watersports, sterndrive boats, tri-toons, bay boats, and any vessel that can use stern lift. It is the best upgrade of older aluminum designs from the 70’s, 80’s, 90’s, and ’00’s, and will outrun most newer props, including the five blade ski props. HUSTLER PROPELLER FEATURES Made of Squeeze Cast for Added Strength Stainless steel performance is built into the Hustler Aluminum prop line. This is achieved through unique blade geometry and an exclusive Turning Point manufacturing process called the Squeeze Casting. This process generates the highest mechanical properties attainable in a cast aluminum propeller resulting from high density tighter grain structure. Stiffer blades means less flex and a faster prop. Most competitor’s aluminum propellers are manufactured via the old die-cast process that produces props with air bubble, voids, and granularity. Making props weak, stiff, inefficient, and difficult to repair. With Lasting Ultracoat Powder Coated Finish Exclusive to Turning Point, the Ultracoat powder coat rivals a fine automotive finish, and is more durable than paint. Utilising a state-of-the-art five step process, the ultracoat gives the propeller a shiny, uniform appearance that enhances any boat’s good looks. This is the Gold Standard in Aluminum Corrosion Protection. As compared to competitors’ paint and coating usual processes, leading to less abrasion and corrosion resistance. With Large and High Flow-Through Barrel Exhaust System Turning Point’s Propeller Housings have massive exhaust flow pathways. Maximising exhaust flow increases horsepower and top end speed. Offers 40% more exhaust flow area versus competive product. More exhaust flow and less backpressure, generates more horsepower. Like headers for the boat. Tuned Vents for Fast Hole Shot Turning Point uses this race boat proven technology to increase low speed acceleration and hole shot. Use it to get your boat on plane faster, and to your favourite fishing spot quicker! (selected models only 13” & 14” diameter 15 Pitch). Best “In-Class” Reversibility Recent tests reveal that new Hustler Aluminium Propellers have up to 46% more reverse thrust over competitive propeller designs. Performance Tuned Rake Angles Higher rake angles tighten the vortex produced by the propellers, adding to boat lift and overall performance. Tuned Progressive Pitch Angles Accelerating and channeling water to minimise slip increases performance and fuel economy. ABOUT MASTERGUARD HUB SYSTEM Exclusive Lifetime Warranty Hubs Turning Point is the only company to offer MasterGuard Installation kits and prop housings for 6-300 HP engines with a lifetime warranty hub. Boaters save up to 38% when buying a replacement propeller housing. MasterGuard hubs are re-useable most of the time after a prop strike, and if not, it is warrantied even if the prop is destroyed. The hubs offer lower unit protection with 1000ft. break point. Engineered to withstand typical wear and tear over time without risk of spinning or failure under normal operational use. Turning Point’s unique patented one piece hub with glass filled nylon over durable marine bronze splines eliminates failures commonly seen in multi-part “sleeve and spline” designs, and pressed-in rubber hub systems. Covered by US Patent #6,471,481, #6,685,432, #7,717,678 and worldwide patents with additional patents pending. Increases Performance and Horsepower Hubs comes with massive exhaust flow pathways due to the reduced hub size. The Propellers have 40% more exhaust flow area versus competive product. More exhaust flow and less backpressure can generate more horsepower. Like headers for the boat. Eliminate Hub System Vibration and Chatter Made of innovative one piece design that reduces the number of parts and eliminates failures commonly seen in multi-part hub systems. Eliminate Hub Cracking and Failure The glass reinforced high-tech polymer construction increases flexibility, eliminating potential material stress fractures. Corrosion Resistant Materials Made of premium corrosion resistant durable marine bronze splines. Reduce Gear Shock and Engine/Drive Damage Made of shock absorbing high-tech polymer cushion with enhanced lower unit protection. Easy to install Made of clear and easy step-by-step directions coupled with minimal parts makes installation easy. Interchangeable with other manufacturer’s props Turning Point’s 500 Series Installation Kits (for 4.25 and 4.75 inch gearcases) interchanges with other manufacturers’ propellers. Upgrades and replaces Mercury Flo-Torq II, Michigan Wheel XHS, and Solas Rubex hub kit systems. WARNINGS MasterGuard Installation Kits are manufactured of marine brass, which contains lead in its metal matrix. This is an element known to the State of California to cause cancer, birth defects or other reproductive harm if ingested. Visit www.p65warning.ca.gov. Hustler Aluminum Propeller Housings are coated with a black colored material, which contains carbon. This is an element known to the State of California to cause cancer, birth defects or other reproductive harm. Visit www.p65warning.ca.gov. For installation guides see the following: Turning Point Hub Kit, Installation Instructions for Models #500 (11500000), #501 (11500100), #505 (11500500), #509 (11500900) Turning Point Hub Kit, Installation Instructions for Model #503 (11500300) Turning Point Hub Kit, Installation Instructions for Model #506 (11500600) Turning Point Hub Kit, Installation Instructions for Model #507 (11500700)
